2018年**國際全印展
All In Print China 2018

展會位置及時間
Exhibition location ＆Time

**.上海 新國際博覽中心
（Shanghai New International Expo Center）
展會號（Booth No.）：N5 B439
時間（Date）：2018.10.24-28

聯系人| Contector
廖先生：13958929280（Mr.Liao）
固話/Tel：0577-63790566
http://m.gwmudiao.cn

您好，我給您介紹一下我們公司的產品。

Hello, I would like to introduce our company's products to you.

溫州豐邦機械有限公司是一家專門做書型盒組裝裝機的公司，我們公司的產品主要分為兩種類型一種是全自動一種是半自動，它們屬于印后包裝機器設備，其用途是針對書型盒的組裝，作用是在盒子的皮殼上噴膠，然后把皮殼跟內盒粘連在一起。

We are a company specializing in the assembly of book boxes. Our group product are mainly divided into two types, one is automatic and the other is semi-automatic.They belong to the post-press packaging machine equipment, its purpose is to book box assembly, the role is to spray on the shell of the box, and then the shell and the inner box together.

它們可以以組裝的盒型有很多種，酒盒、化妝品盒、月餅盒、禮品盒、天地蓋盒等等

They can be assembled in a variety of boxes, wine boxes, cosmetics boxes, moon cake boxes, gift boxes, heaven and earth cover boxes, and so on

我們的機器機已通過 CE 認證

Our machine has been certified by CE

半自動機器性能及特點：

一、皮殼疊加上堆放，不用停機加皮殼。

二、皮殼真空下吸皮帶輸送，不會刮痕。

三、導軌畫膠，粗組可調節。

四、整機一字型，占地面積小

五、內盒皮殼在同一方向一人加料，節約人工。整機只須 2 人操作

六、內盒司服取盒，帶自動糾邊功能，**度高。

七、整機有五個司服，調版數據輸入，操作簡單，無報費率。

八、壓盒部位上壓下壓側壓一次完成

Semi- automatic assembly machine

Machine performance and characteristics:

First, the shell stacked on the stack, no stop skin shell.

Second, the leather shell vacuum suction belt transport, no scratch.

Third, the guideway drawing glue, the coarse group can be adjusted.

Four, the whole machine one font type, the occupation area is small

Fifth, the inner box leather shell in the same direction a person feeding, save labor. The whole machine should be operated by only 2 people

Six, the inner box service takes the box, has the automatic edge-correcting function, the precision is high.

Seven, the whole machine has five division service, adjust the data input, simple operation, no reported rate.

Eight, the pressure box part up press down pressure side press one time to complete

根據不同產品的需求我們有不同的膠水，1、熱膠，熱熔膠2是冷膠，白膠

According to the requirements of different products, we have different glue 1, hot glue, hot melt adhesive 2 is cold glue, white glue

一分鐘可以組裝18-25個盒子 It can assemble 18-25 boxes in a minute.

半自動裝機操作說明：

首先在控制系統上設定好要畫膠的樣式，再把皮殼放到定位點，盒子由輸送帶運送到噴膠定位點，膠槍在皮殼上畫膠，畫好膠后把內盒放到皮殼上然后盒子來到壓盒板位置壓盒，把皮殼跟內盒粘連在一起，**后由工人整理盒子。

Semi automatic operation instructions:

First of all, in the control system, set the style to draw glue, then put the leather shell at the location point. The box is transported from the conveyor belt to the glue spray location point, and the glue gun draws glue on the leather shell. After the glue is drawn, the inner box is placed on the leather shell and the box comes to the pressure box. The case is glued to the inner box. Finally, the workman arranges the box.

全自動組裝機操作說明：

1、控制系統上設定好要畫膠的樣式

2、把皮殼放到自動上升位置，把內盒放到旁邊輸送帶上。然后啟動機器

3、皮殼由自動上升板位置來到噴膠位置，膠槍在皮殼上噴膠，畫好膠后輸送帶將皮殼運送到放內盒位置上，機械手將內盒夾住放到皮殼上，（可用夾子或者吸盤）然后運送到壓盒位置將它們粘合在一起，**后來到翻板處，將盒子整合。

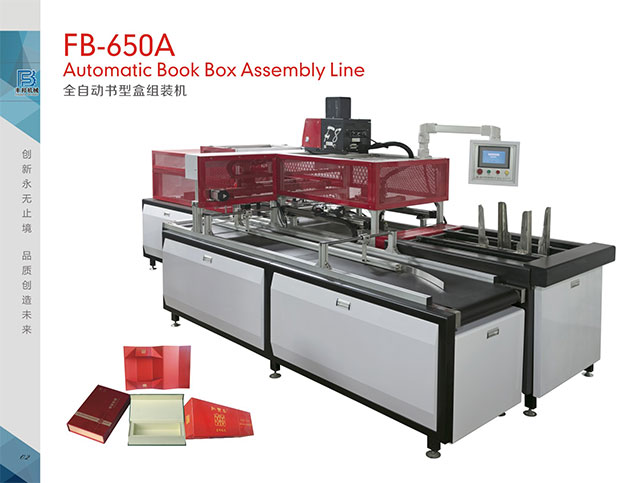

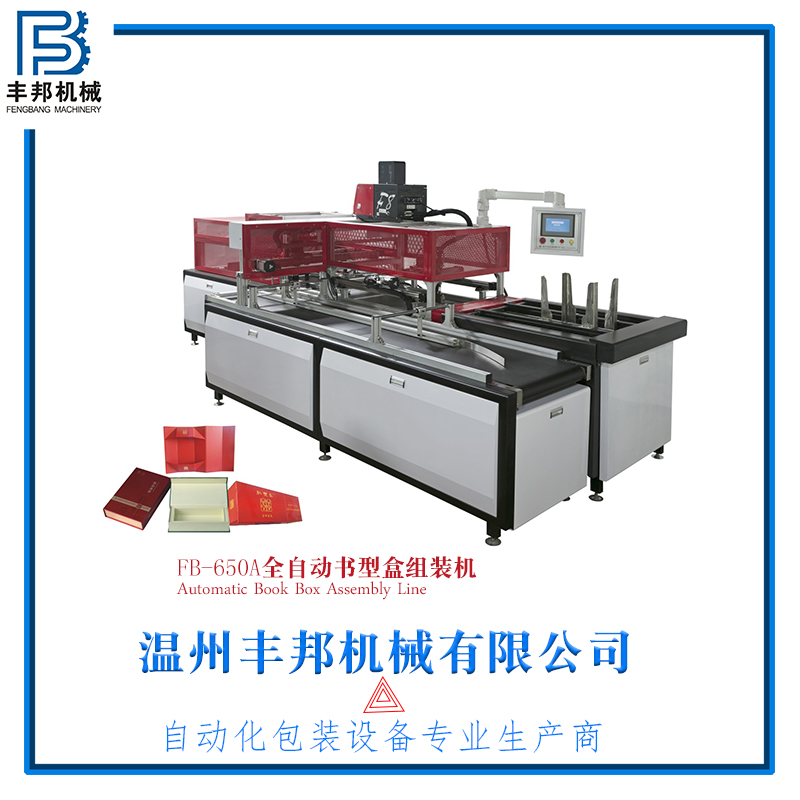

Automatic assembly machine operation instructions:

Set the pattern of glue on the control system

Put the leather shell in the automatic rise position and put the inner box on the side conveyor belt. And start the machine.

The leather shell moves from the position of the automatic riser to the position of the spray glue. The glue gun sprays the glue on the shell. After drawing the glue, the conveyor belt carries the shell to the position of the inner box. The manipulator clamps the inner box onto the leather shell,（Available clip or sucker） which is then transported to the box position to glue them together, and finally to the flip plate to integrate the box.

可根據產品的大小調節寬度The width can be adjusted according to the size of the product.

自動上升皮殼Self rising crust

這個地方設置畫膠圖形This place is set up with glue graphics.

通?？梢栽O置，直線型、方形、圓形、圓弧、Z字型等等

Usually can be set, straight, square,Z, and so on

罩殼housing

自動上升皮殼Automatic riser shell

這里放置

    溫州豐邦機械有限公司，成立于2002年，一直致立于生產研制自動化印刷包裝設備。主要生產產品有：全自動書型盒組裝機，半自動組裝機等。

    我公司所有產品均有我廠技術人員獨立開發研制，其整合了國內外機型的諸多優點。

    我們公司的宗旨；以人為本，誠信立業，不斷超越，爭創品牌，打造機械精品，成就客戶價值，創新永無止境，品質創造未來！

Wenzhou Fengbang Machinery Co., Ltd., founded in 2002, has been committed to the production and development of automatic printing and packaging equipment. The main products are: automatic book box assembly machine, semi-automatic assembly machine and so on.

All our products have been developed independently by our technicians, which integrates many advantages of advanced models at home and abroad.

Our company's purpose: people-oriented, honest business, constantly beyond, strive to create a brand, create high-quality machinery, customer value, innovation never-ending, quality to create the future!

溫州豐邦機械有限公司 | Wenzhou FengBang Machinery Co., Ltd.

地址/Add：浙江省溫州市平陽縣濱海新區陽嶼路9號萬洋眾創城8號樓

聯系人 | Contector：廖先生（Mr.Liao）

手機/Mobile：13958929280
固話/Tel：0577-63790566

Q Q：2877939667  1160755449

E-mail：wzfbjx@126.com

傳真/Fax：0577-63790599

http://m.gwmudiao.cn

歡迎關注溫州豐邦機械有限公司！
Welcome to Wenzhou FengBang Machinery Co., Ltd.
